The ideal solution for every business environment

Greater space saving and easiest installation
Wide airflow for efficient performance
High results in heating operation with the aid of the auxiliary heater

Your precious partner

Excellent performance with low power consumption. The equable and smart air diffusion satisfies even the most peculiar rooms.

2 Year Warranty for all Inventor Products

All Inventor Air Conditioners are accompanied with a 2-year warranty card. Their high production quality ensures their impeccable performance and long-term operation, even in the most demanding conditions.

WARRANTY SUBMISSION

Features

Auto Restart

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

24-hour Timer

Set the unit to start and stop automatically in a 24h period.

Auxiliary Heater

Plug-in electric heater, for higher efficiency in heating even in very low weather conditions.

Anti-Cold Air Function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation

All DC Inverter

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

ASK US FOR A QUOTE

Auto restart

If the air conditioner turns off unexpectedly due to a power outage, it will restart with the previous setting mode automatically when the power resumes.

24-hour timer

Set the unit to start and stop automatically in a 24-hour period.

Anti -cold air function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation.

Auxiliary heater

Plug-in electric heater, for higher efficiency in heating even in very low weather conditions.

Technical Specifications

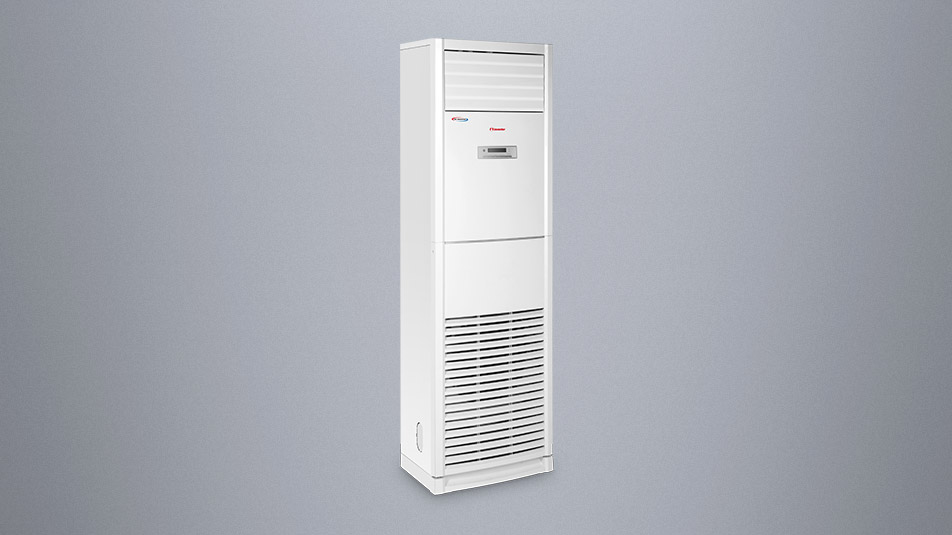

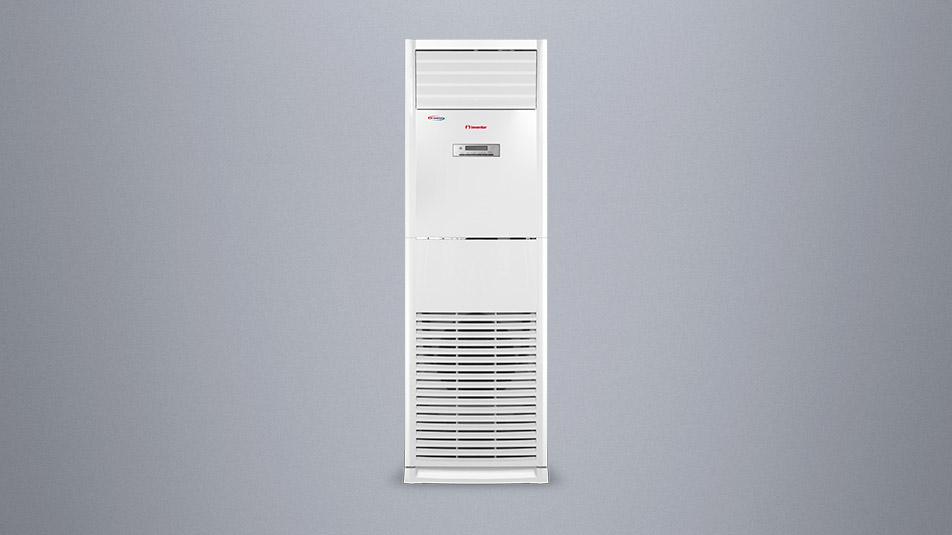

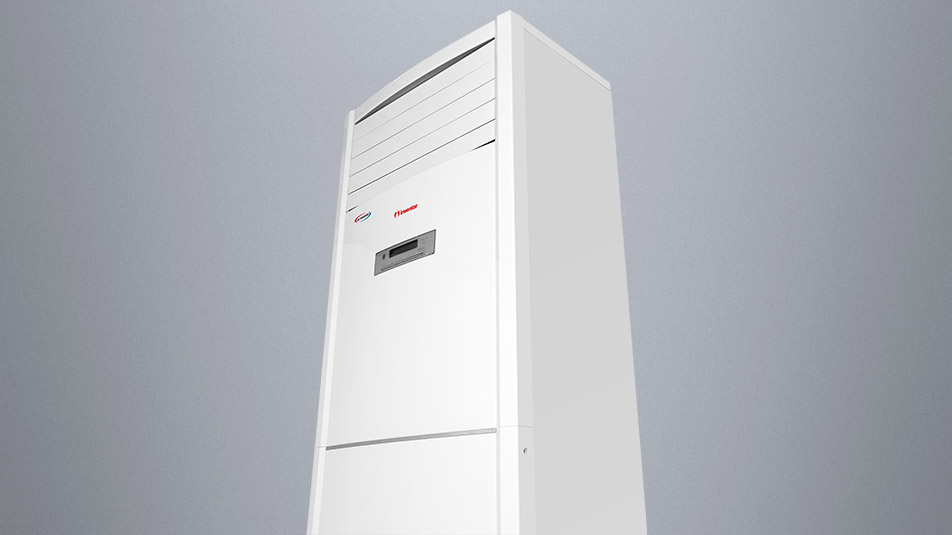

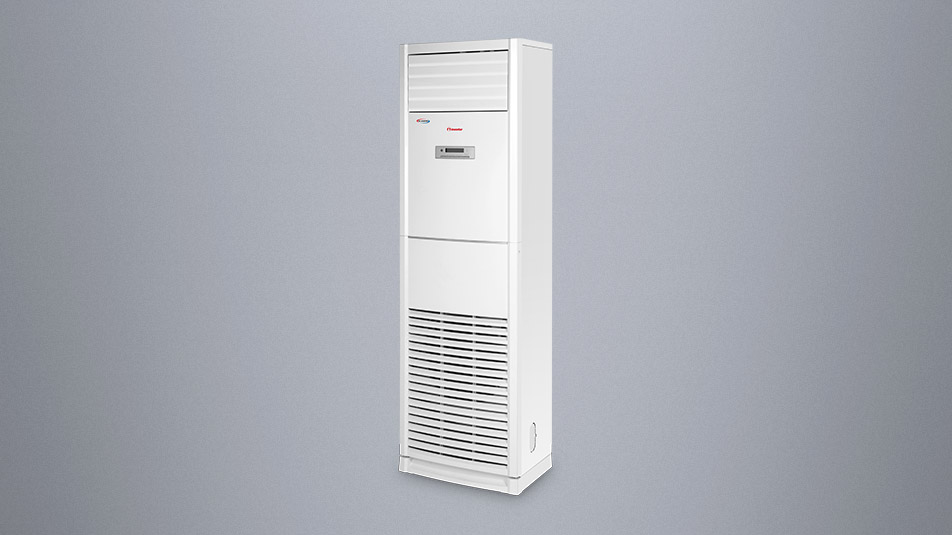

V4MFI - 66B / V4MFO - 66B
55.000 (16.500-63.250)
Heating Capacity 58.000 (17.400-69.600)+12.000 Btu / h
Cooling Capacity Range 16.12 (4.84-18.54) kWatt
Heating Capacity 17.0 (5.1-20.4)+3.52 kWatt

Seasonal Efficiency(In accordance
to EN14825) Cooling
Pdesign 15.5 kW
Energy Class A+
SEER 6.0
Seasonal Efficiency(In accordance
to EN14825) Heating Middle Zone
Pdesign 12.2 kW
Energy Class Α+
SCOP 4.0
Seasonal Efficiency(In accordance
to EN14825) Heating Warm Zone
Pdesign 12.6 kW
Energy Class A+++
SCOP 5.1
Voltage / Frequency / Phase 380 / 50 / 3 V / Hz / Ph
Current Input - Cooling 10.2 Α
Current Input - Heating 8.10 Α
Power Input - Cooling 5970 ( 1493 – 7726 ) W
Power Input - Heating 17.0 ( 5.1 – 20.4 ) + 3.52 W
Air Flow Volume (High/Medium/Low) 2.285 / 1.927 / 1.479 m3 / h
Noise Level - Indoor unit (Low/Medium/High) 49 / 54 / 58 dB (A)
Noise Level - Outdoor unit 62.5 dB (A)
Sound Power Level - Indoor/Outdoor unit 67/74 dB (A)
Power Supply Wire Outdoor / Fuses 5 × 2.5 / 3 × 16 No x mm2 / Α
Signal Wires 5 × 2.5 (2 × 0.5 Shield) No x mm2
Dimensions WxDxH - Indoor unit 610 x 390 x 1.925 mm
Dimensions WxDxH - Outdoor unit 952 x 415 x 1.333 mm
Net Weight - Indoor / Outdoor 60.8 / 112.8 kg
Liquid line | Gas line 3 / 8” - 5 / 8”
Refrigerant / Charge R410A / 4.300 g
Outdoor Operation Temperature Range - Cooling/Heating -15~50 / -15~24 °C

Excellent Heating Performance Under -15°C

Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.

Turbo Mode

This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.

Auto Error Diagnosis

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

Central Control Management (Optional)

The centralized multi-functional device can control up to 64 indoor units within a maximum connection length of 1200m. Control your air conditioner, set the temperature you want and select the mode you desire. Ideal for hotel & business units.

Low Ambient Cooling

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.
