Features
Technical Specifications
- V4MRFI-24/V4MRFO-24
- 24.000 (7.500-26.500)
- Heating Capacity 26.000 (5.200-29.500) Btu / h
- Cooling Capacity Range 7.03 (2.20-7.77) kWatt
- Heating Capacity 7.03 (1.52-8.65) kWatt
-
Seasonal Efficiency(In accordance
to EN14825) Cooling - Pdesign 6.9 kW
- Energy Class A++
- SEER 6.5
-
Seasonal Efficiency(In accordance
to EN14825) Heating Middle Zone - Pdesign 5.4 kW
- Energy Class Α+
- SCOP 4.0
-
Seasonal Efficiency(In accordance
to EN14825) Heating Warm Zone - Pdesign 5.1 kW
- Energy Class A++
- SCOP 4.9
- Voltage / Frequency / Phase 220-240/50/1 V / Hz / Ph
- Current Input - Cooling 9.5 Α
- Current Input - Heating 8.6 Α
- Power Input - Cooling 2.175 W
- Power Input - Heating 1.895 W
- Air Flow Volume (High/Medium/Low) 806/704/605 m3 / h
- Noise Level - Indoor unit (Low/Medium/High) 35/38/40 dB (A)
- Noise Level - Outdoor unit 60 dB (A)
- Sound Power Level - Indoor/Outdoor unit 58/63 dB (A)
- Power Supply Wire Outdoor / Fuses 3 X 2.5 / 25 No x mm2 / Α
- Signal Wires 3 x 1.5 & (4x1.0 Shield) No x mm2
- Dimensions WxDxH - Indoor unit 405x405x1.775 mm
- Dimensions WxDxH - Outdoor unit 845x363x702 mm
- Net Weight - Indoor / Outdoor 31.1/51.2 kg
- Liquid line | Gas line 1/4" - 5/8"
- Refrigerant / Charge R410A/1.950 g
- Outdoor Operation Temperature Range - Cooling/Heating 0-50 / -15-24 °C
More
Auto Error Diagnosis
Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
Refrigerant Leakage Detect
Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected
Auto Swing Louver
Distributes cool/warm air to maximum area by moving horizontal flaps automatically.
24-hour Timer
Set the unit to start and stop automatically in a 24h period.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
Louver Position Memory
Horizontal louver will automatically move to the same position as you set last time when the unit turned on
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
Lock
Engage the lock function to prevent anyone from changing the settings or children playing with the unit.

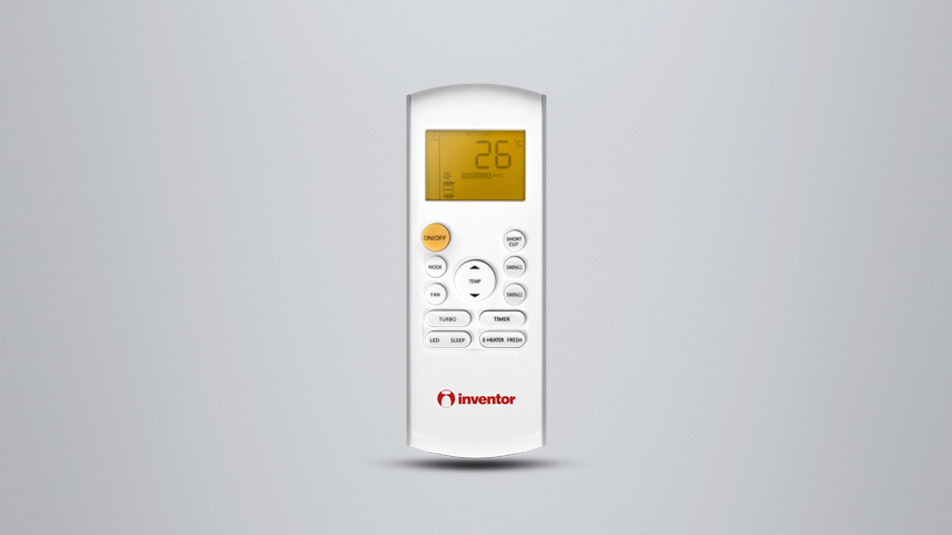

Smart Controller
Take advantage of the 4 choices to adjust the indoor unit’s fan speed and benefit from the Filter Cleaning Reminder mode, the Louver Position Memory, the Temperature Compensation sensor and the Higher/ Lower Temperature settings to create the ideal conditions in your place.
Excellent Heating Performance Under -15°C
Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.
4 Way Air Flow
The renewed design creates uniform air distribution in all dimensions. The vent swings not only move horizontally but vertically as well dispersing the air smoothly even in the most difficult spots.
